PRO18SUB – One Sub. Every Situation.
Home theater that rattles the walls. Parties that start the second it turns on. Tailgates that steal the parking lot. Rooftop sets that carry across the city. Pep rallies that reach the top bleacher. At practice where you can hear the music at the other end zone.
That’s the PRO18SUB experience.
What it actually does for you
- Turns movie nights into something you feel in your chest, not just hear
- Gives house parties and backyard gatherings that evoke comments from your neighbor a few houses down
- Completes your hi-fi or home-theater system with clean, distortion-free low end that reaches down to 28 Hz
- Pair it with the optional C1000 battery pack and go completely off-grid, throw that rager in the middle of nowhere or have the loudest tailgate at the party
What’s inside
- Peak Output 133dB
- Conservatively rated at over 500W RMS Continuous, 1000W IEC202 standard
- Texas Instruments Full Bridge Class D Amplifier
- 18″ long-throw driver with a 4″ voice coil and 140 oz magnet
- Smart onboard DSP
- Smooth analog-style knobs for the variable 24 dB/oct low-pass crossover
- XLR in/out + True Wireless Stereo Bluetooth for easy linking
- Tough 18 mm Baltic birch cabinet with weather-resistant finish and smart stacking feet
- Soft limiter protection and LED indicator
- Signal Present LED indicator
- Bluetooth input and TWS to wirelessly connect another PRO18SUB

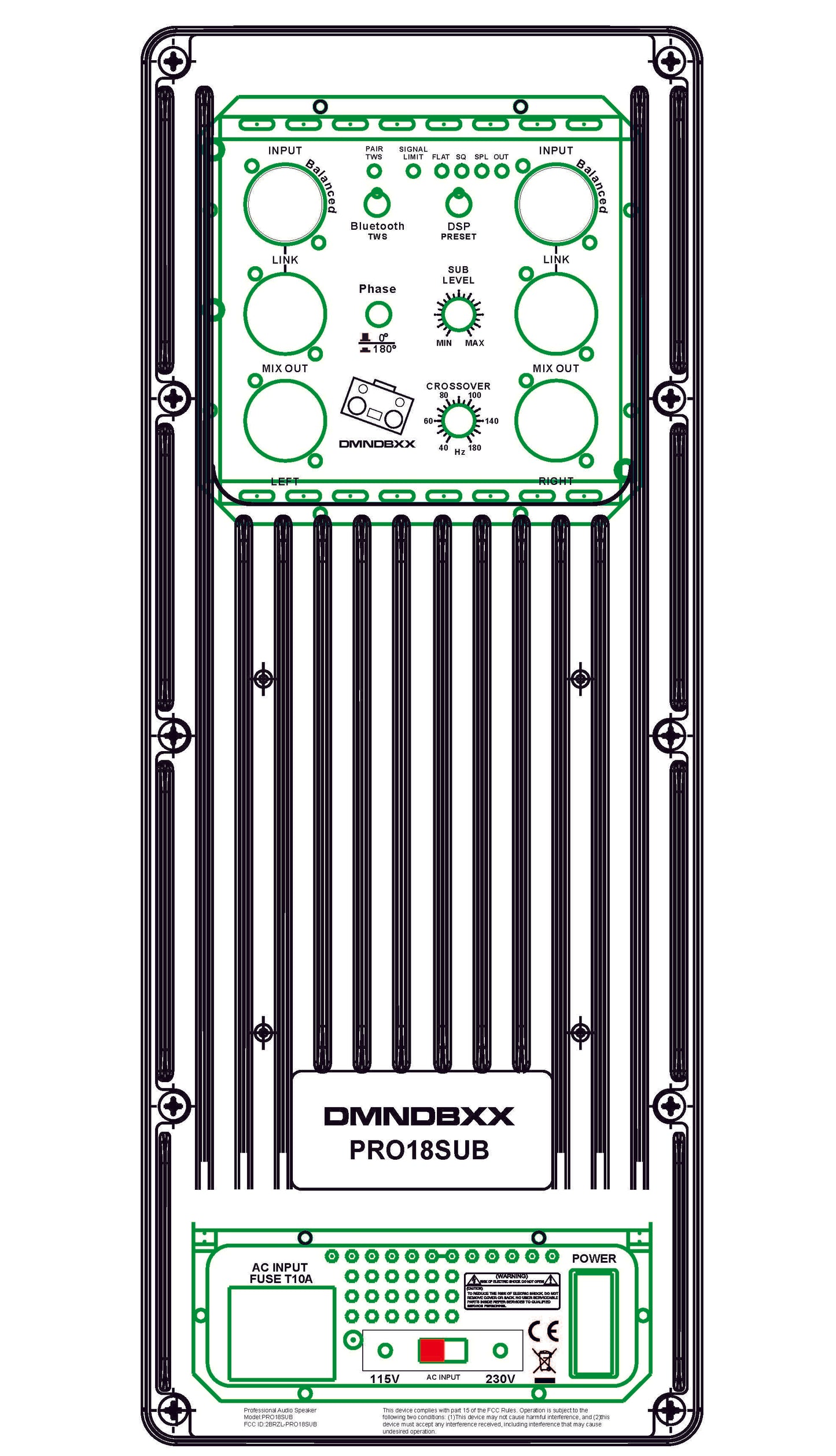

Precision Control
- Onboard DSP
- Fully variable 24 dB/octave low-pass crossover (40–180 Hz) via analog-style knobs
- 4 DSP Modes optimized for different environments
- FLAT for pure accuracy
- SQ for extended lows for hi-fi or home theater
- SPL for maximum loudness outdoors
- OUT for maximum outdoor run-time on battery power
- Dual XLR inputs with mix, level, and phase 0/180
Built to Stack & Link
- XLR in/out for seamless daisy-chaining
- Integrated feet + receptacles for rock-solid stacking
- Easily removable steel grille, removable acoustic foam, paintable grille
Uncompromised Quality
Experience pure, reliable audio that never compromises—built for pros, loved by party legends.
Complete Your System
Ready to feel the floor move? Add the PRO18SUB to your cart now.
Build Quality
The 18mm birch plywood enclosure is braced and coated in a weather ready durable poly coating for outstanding longevity. Dual bass ports are built into the enclosure and fire through the front grille. In a living room, you can feel the air they move in the room. Indexed feet, feet pockets and a screw-in pole mount provides flexible configuration options for portable or permanent installations. Ergonomic handles, removable power cords makes for easy transport, connection, and operation. The enclosure is made of The amplifier heatsink is cast aluminum. The amplifier controllers are Texas Instruments driving extremely low Rds latest generation MOSFETs for low distortion and robustness.
Specifications
Amplifier Power
>500W RMS continuous sine CTA-2006D Standard, AD-1 Dyno Certified
>1000W RMS dynamic IHF-202 Standard, AD-1 Dyno Dynamic
Subwoofer Driver
18" Treated Paper Cone long throw design
4" Voice Coil
Multifold Surround
140 oz. magnet
Low Distortion motor
System Performance
Frequency Response: 32–180 Hz (±3 dB) | 28–230 Hz (–10 dB)
Maximum Output: 133dB
Enclosure
18mm Baltic birch, treated and coated, internally braced
6 cubic feet dual ported bass reflex tuned to 32Hz
Product Dimensions
26"H x 20"W x 27.5"D
95 lbs
Shipping Dimensions
29.5"H x 23"W x 30.5"D
105 lbs
Power requirements
100V-120VAC or 220-240VAC (switchable) 50/60Hz
10A Fuse. Compatible with our C1000 portable power station for portable battery powered use with no extension cords!
PRO18SUB Manual
